SFTP

Reads each file under a prefix of one directory on an SFTP server, its subdirectories included, and splits it into records.

The source finds files by listing the directory every poll interval. It reads a file once two listings in a row find it unchanged, since an upload to it may still be under way. Only one worker of each group reads this source at a time.

Example

Reads each file under /srv/export/incoming one line per record, signing in with a private key, and renames each under done/ once Smeltr delivers every record.

{
  "id": "partner-drop",
  "type": "sftp",
  "host": "sftp.example.com",
  "username": "smeltr",
  "privateKey": "SFTP_PRIVATE_KEY",
  "hostKey": "ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAID3o82ivVxzYDbjz/HQTXSvCvoEb7fBpGzXPVbqK+q63",
  "directory": "/srv/export",
  "prefix": "incoming/",
  "framing": "lines",
  "afterCommit": "move",
  "movePrefix": "done/"
}

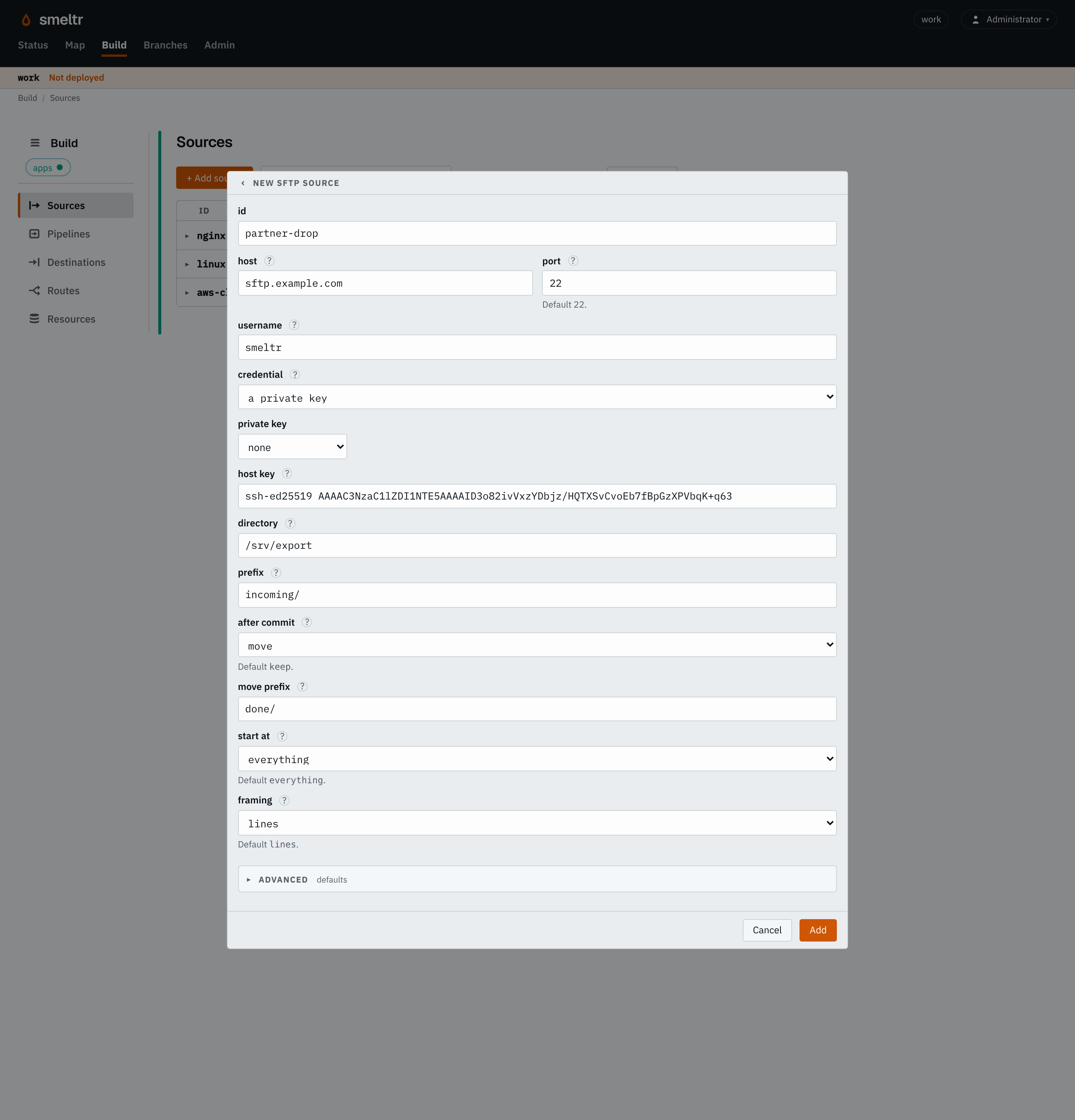

The SFTP form on the Sources page: id partner-drop, host sftp.example.com, username smeltr, a private key, the host key, directory /srv/export, prefix incoming/, after commit move to done/.
Open complete screenshot ↗
The SFTP form on the Sources page: id partner-drop, host sftp.example.com, username smeltr, a private key, the host key, directory /srv/export, prefix incoming/, after commit move to done/.
Open complete screenshot ↗
The same source in the Sources page's add dialog, before you pick its private key.

Before you start

  • Have a user on the server that can list and read the directory and its subdirectories. With afterCommit delete or move, the user also needs write access to the directory, to remove or rename files there.
  • Put the user's password, or its private key, in a credential. The private key is an unencrypted RSA, ed25519 or ECDSA key in OpenSSH's format.
  • Have the server's public host key, as one line as OpenSSH writes it: ssh-ed25519 AAAA…. It is in the server's /etc/ssh/ssh_host_ed25519_key.pub. ssh-keyscan also prints it:
    ssh-keyscan -t ed25519 sftp.example.com
    Drop the host name its line starts with, and check the key against the server's file, since ssh-keyscan trusts the network it asks over.

Settings

It also takes the settings every source takes.

host string required

The server's host name or address.

Examples
sftp.example.com10.20.0.5

port integer default 22

The server's SSH port.

Examples
22228022

username string required

The user it signs in as. keep needs only read access to directory; delete and move need write access to it.

Examples
smeltrlogship

password credential default none

The credential holding the user's password. Set exactly one of password and privateKey.

Examples
SFTP_PASSWORD{"secret": "sftp-password","version": 1}

privateKey credential default none

The credential holding the user's private key: an unencrypted RSA, ed25519 or ECDSA key in OpenSSH's format.

Examples
SFTP_PRIVATE_KEY{"secret": "sftp-private-key","version": 1}

hostKey string required

The server's public key as OpenSSH writes it, ssh-ed25519 AAAA…, without a host name: it connects to that server and no other. Copy it from the server's /etc/ssh/ssh_host_ed25519_key.pub, or from ssh-keyscan -t ed25519 sftp.example.com, dropping the host name it starts with; keyscan trusts the network it asks over, so check its answer against the server's file.

Examples
ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAID3o82ivVxzYDbjz/HQTXSvCvoEb7fBpGzXPVbqK+q63ecdsa-sha2-nistp256 AAAAE2VjZHNhLXNoYTItbmlzdHAyNTYAAAAIbmlzdHAyNTYAAABBBPT4vL5z8JYqEGtjsJtSoSPB1y5safkYlshfGequONZMPCxZoMdIKSdDTRHCSEUHpd/7wzV9jILPtC9O+qHxbZc=

directory string default

The directory it reads: absolute, or under the user's home directory. Empty is the home directory.

Examples
/srv/exportexports/daily

prefix string default

Only files whose path under directory starts with it. It does not start with /. Empty is every file under directory.

Examples
app/incoming/logs/2026/

format string default each payload is text, in _raw

How each payload becomes the record.

avro
Reads Avro files. Fields you don't declare are kept.

fields list of fields default none

The Avro fields to read, each with a name and a type such as i64 or str. Name a nested field with dots, such as user.id. Top-level fields you don't list are kept. Only with format avro.

Example
[{"name": "user_id","type": "i64"},{"name": "user.name","type": "str"}]

framing string default lines

How a file becomes records.

lines
Gives one record per line, or per piece lineBreaker cuts.
object
Gives the whole file as one record, for a JSON document that a pipeline unrolls.
escapedLines
Gives one record per line, unescaped as a bytes object destination wrote it.

lineBreaker string default a record per line

With lines framing, and only then: where a record ends. Its first capture group is the break and is dropped: the bytes before it end a record, line ends and all, and the bytes after it start the next. What follows the group is kept, so the pattern can say how a record starts: ([\r\n]+)\d{4}- keeps a stack trace with the line that logged it, and </event>(\s*) cuts XML events with no line ends between them. It needs a capture group and must not match the empty string.

Examples
([\r\n]+)\d{4}-</event>(\s*)

afterCommit string default keep

What it does with a file once every record is delivered.

keep
Leaves it and records it as read. Needs only read access, and costs a full listing per poll.
delete
Deletes it. Needs write access to the directory.
move
Renames it under movePrefix in place of prefix. Needs write access to the directory.

movePrefix string default none

Where move puts a file under directory, in place of prefix. Only with move, and outside prefix. It does not start with /, and ends in / when prefix does or is empty, and only then.

Examples
done/archive/2026/processed/app/

Advanced

start string default everything

What it reads first.

everything
Reads everything its first listing finds.
new
Reads only what arrives after its first listing. Needs afterCommit keep.

pollIntervalSecs integer default 60

Seconds from the start of one listing to the start of the next. At least 1.

Examples
300303600

encoding string default auto

How a record's bytes become _raw's text: auto, none, or a WHATWG encoding label other than the replacement ones, such as utf-8, utf-16le or shift_jis.

auto
Detects each record's encoding.
utf-8
Decodes every record as UTF-8, as any other label decodes as its own encoding. Bytes that do not decode become U+FFFD.
none
Decodes nothing: the record has no _raw, and its payload is __source.bytes alone. A pipeline reads it as text with decode(__source.bytes, encoding).

Fields it gives

__source.bucket holds the directory, and __source.key the file's path under it.

FieldTypeHolds
__source.namestrThe name of the source that read the record.
__source.typestrThe kind of source that read it, its type, such as kafka, s3List, httpApi or hecReceiver.
__source.bucketstrThe bucket, or Azure container, the record's object is in.
__source.keystrThe key, or Azure blob name, of the object the record was read from.
__source.offseti64The record's offset in its Kafka or Event Hubs partition, or its record number in its object, from 0.
__source.bytesbytesThe record's payload as the source read it, before any decoding. The source decodes _raw from it. A bytes destination writes it unless the destination names another field. Text functions refuse it; decode(__source.bytes, encoding) reads it as text.

How it works

Every pollIntervalSecs the source lists directory and each subdirectory that may hold a path starting with prefix. It reads regular files only: it skips a link. A file's version is its size and modification time. The source reads a file it finds new or changed once the next listing finds it the same, and reads it again whole if it changes after that. The source does not see a rewrite to the same size within the same second as a change.

The source decompresses a gzip, zstd, framed snappy or framed lz4 file first and reads any other as it is.

The source skips the files an SFTP destination writes under a hidden temporary name before renaming them into place, so it reads a file such a destination writes only once it is whole.

One worker reads it

Every worker of the group runs the source, and the leader holds it for one of them, which reads it. The leader gives the hold to another worker after three heartbeat intervals without hearing from the holder, the holder's interval or the leader's, whichever is longer, and that worker resumes from the last progress the leader kept. That worker delivers again what the previous holder delivered after that progress, so a takeover can cost duplicates, never lost records.

After commit

Once Smeltr delivers every record of a file, the source does what afterCommit says:

  • keep leaves the file and records its path and version in a ledger, which the worker reports to the leader. The next worker to read the source reads only what the ledger does not hold. Every poll lists everything under the prefix.
  • delete removes the file.
  • move renames the file on the server, from under prefix to under movePrefix, creating the directories it needs. The rename replaces a file already at the new path.

With delete or move, the directory is its own queue and the source keeps no ledger. Either one first checks that the file still holds the version the source read; the source leaves a file changed since in place and reads it again.

A file handed out five times and never delivered counts as unreadable, and is not read again until it changes. With keep it goes into the ledger as read; with delete or move it stays where it is. With delete or move only the holder remembers it, so a restart or a new holder hands it out again.

Start

start everything reads every file the first listing finds. new records what the first listing finds as read, and reads only what arrives or changes after it. It needs afterCommit keep.

The source's progress belongs to its name and to its user, host, port, directory and prefix. Renamed, or pointed anywhere else, it starts afresh.

Once you remove the source and deploy, the leader forgets its progress, so a rollback that brings the source back starts it afresh.

The host key

The source connects only to the server holding the key in hostKey, and asks the server for a key of that kind only, so a server holding keys of several kinds shows the one pinned. The source refuses a server offering any other key before it signs in.

Verify

Upload a file with a line you can recognize to the directory, under the prefix, then find that line at the destination once the next two listings have passed. With delete the file then leaves the directory; with move it is under movePrefix.

On the Sources page, the worker column names the worker holding the source, and with keep how many files its ledger holds.

Troubleshooting

the server's host key is not the one configured
hostKey is not the key this server offers. Copy it again from the server's /etc/ssh/ssh_host_<kind>_key.pub, of the kind you pin. A server whose key was replaced needs the new one.
the server refused the password given for user …
The server does not accept that password, or, for a private key, that key, for username. Check the credential's value, and for a key, that the user's authorized_keys on the server holds its public half.
no connection within 30s
Connecting and signing in did not finish. Check that the worker host can reach host on port, and that the port is the server's SSH port.
Nothing arrives
The source reads a file only once two listings in a row find it the same, so allow two poll intervals. Check that the file's path under directory starts with prefix, and the worker log for the reason a listing failed. With keep, a subdirectory under the prefix that the user may not read fails the whole listing; with delete or move the source skips it with a warning.
The worker column is empty
No worker of the group holds the source: check that a worker of the group is running and reaches the leader.
